Stainless steel is an iron-based alloy containing chromium, which helps improve corrosion resistance. Elements such as nickel, molybdenum and carbon influence the strength, formability and performance of different grades.
Metalloy Steel deals in a range of stainless steel grades, including SS 304, SS 316, 17-4 PH, Duplex 2205 and Super Duplex 2507. These grades are available across selected product forms to meet varied industrial and engineering requirements.
Metalloy Steel offers stainless steel products across several product categories. Explore the existing product pages to review the relevant grade and product information.
Metalloy Steel deals in a range of stainless steel grades across austenitic, ferritic, martensitic, precipitation-hardening and duplex stainless steel families.
| Stainless Steel Family | Available Grades |
|---|---|
| Austenitic Stainless Steel | SS 303, SS 304, SS 304L, SS 310S, SS 316, SS 316L, SS 321 |
| Ferritic and Martensitic Stainless Steel | SS 410, SS 416, SS 420, SS 430, SS 431 |
| Precipitation-Hardening Stainless Steel | 17-4 PH |
| Duplex Stainless Steel | Duplex 2205 |
| Super Duplex Stainless Steel | Super Duplex 2507 |
Comprehensive chemical composition limits, mechanical performance data, and physical properties for standard stainless steel grades.
| Chemical Element | SS 304 | SS 316 |
|---|---|---|
| Carbon (C) | 0.07 | 0.00–0.07 |
| Chromium (Cr) | 17.50–19.50 | 16.50–18.50 |
| Nickel (Ni) | 8.00–10.50 | 10.00–13.00 |
| Molybdenum (Mo) | — | 2.00–2.50 |
| Manganese (Mn) | 2.00 | 0.00–2.00 |
| Silicon (Si) | 1.00 | 0.00–1.00 |
| Phosphorus (P) | 0.045 | 0.00–0.05 |
| Sulphur (S) | 0.015 | 0.00–0.03 |
| Nitrogen (N) | 0.10 | 0.00–0.11 |
| Iron (Fe) | Balance | Balance |
| Mechanical Property | SS 304 | SS 316 |
|---|---|---|
| Proof Stress | 210 MPa min. | 205 - 310 MPa |
| Tensile Strength | 520–720 MPa | 520 - 620 MPa |
| Elongation | 45% min. | 40% min. |
| Brinell Hardness | 201 HBW | 217 HBW max. |
| Compressive Strength | 205 - 310 MPa | 170 to 310 MPa |
| Physical Property | SS 304 | SS 316 |
|---|---|---|
| Density | 8,000 kg/m³ | 8.0 g/cm³ |
| Melting Point | 1,450 °C | 1,400 °C |
| Thermal Expansion | 17.2 × 10⁻⁶ /K | 15.9 × 10⁻⁶ /K |
| Modulus of Elasticity | 193 GPa | 193 GPa |
| Thermal Conductivity | 16.2 W/m·K | 16.3 W/m·K |
| Electrical Resistivity | 0.072 × 10⁻⁶ Ω·m | 0.74 × 10⁻⁶ Ω·m |
Material verification confirms that supplied products meet the specified grade and order requirements. Testing and documentation depend on the applicable standards and agreed supply conditions. Verification may include:
Documentation identifying the material and reporting applicable test results, where supplied.
Review of the reported chemical composition against the applicable material specification.
Review of relevant proof stress, tensile strength, elongation or hardness results where required.
Material identification testing where specified and available.
Independent inspection where agreed for the order.

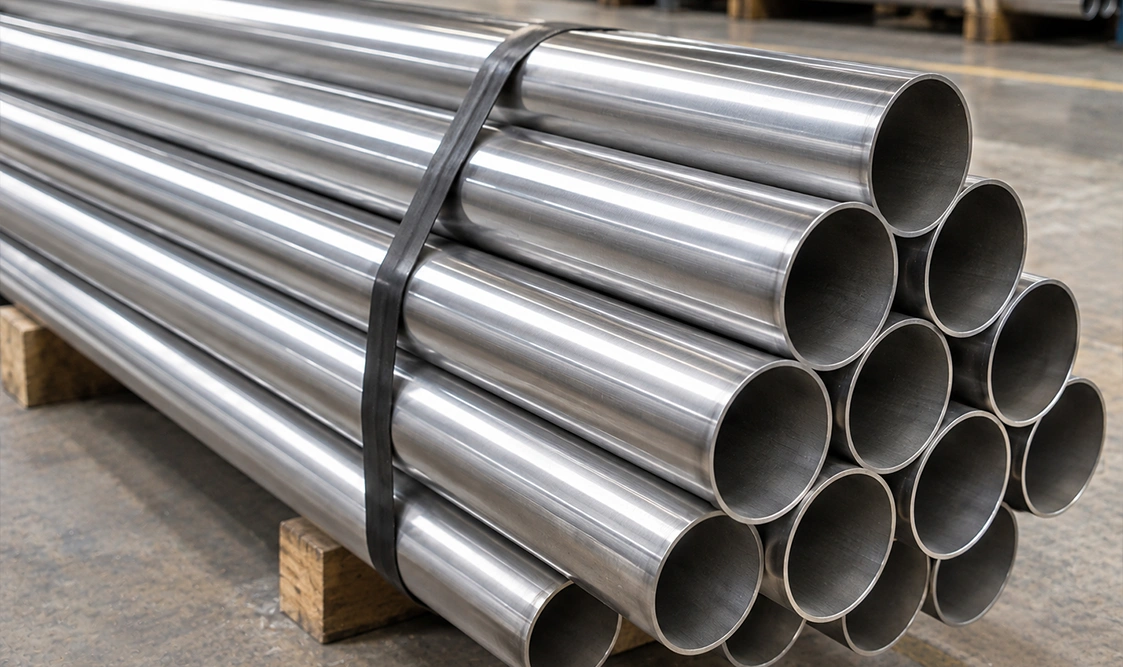

Looking for stainless steel round bars, pipes, sheets, plates, coils, flat bars, angles or flanges? Contact Metalloy Steel with your required grade and product specifications so your enquiry can be assessed against the relevant supply requirements.
