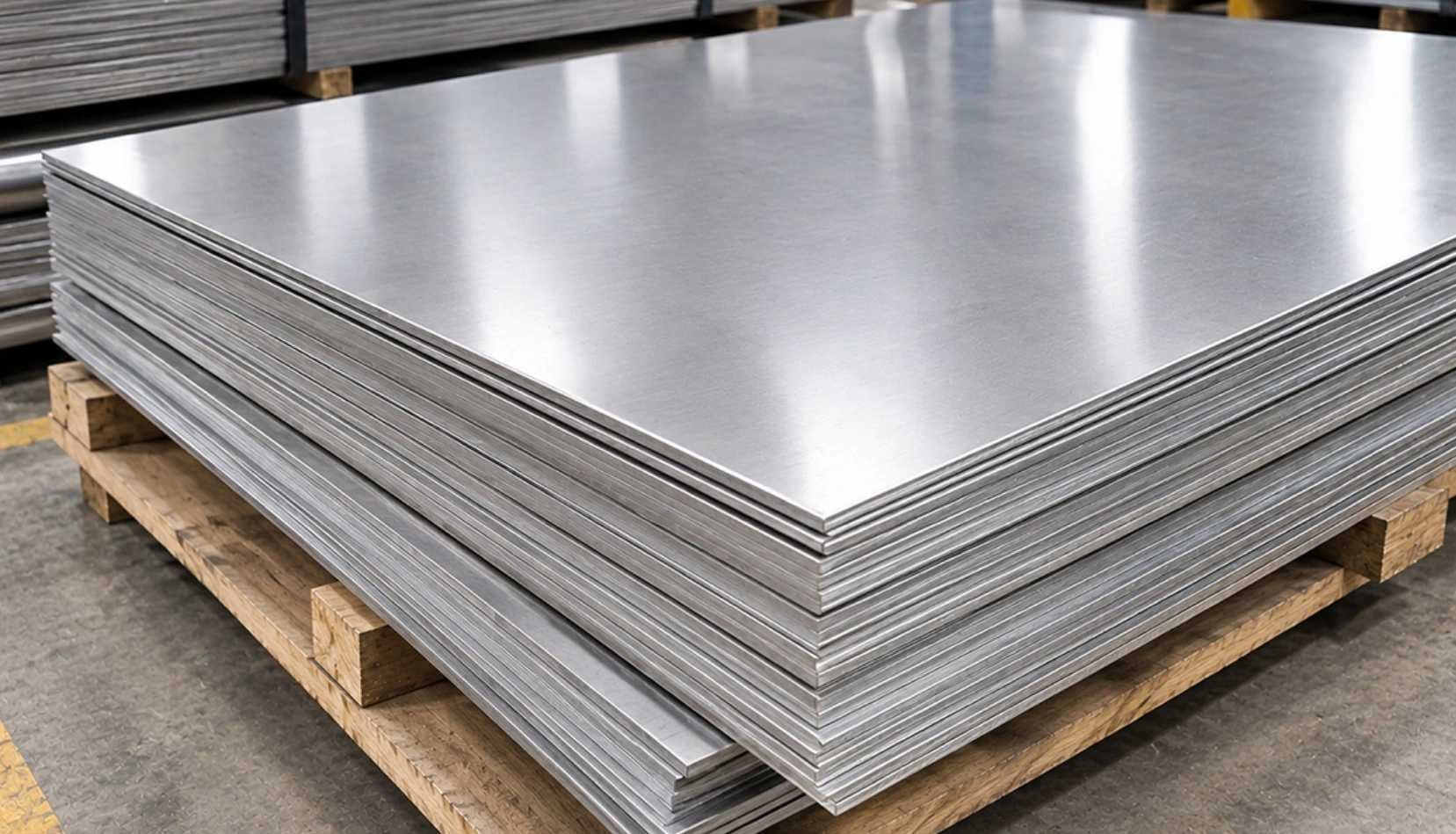

SS 304 Sheets and Plates are chromium-nickel stainless steel products used in fabricated equipment, process systems and industrial enclosures. SS 304 (UNS S30400) offers good general corrosion resistance and formability, while SS 304L (UNS S30403) has a lower carbon limit that helps reduce sensitisation during welding, making it a useful choice for welded fabrications.
Metalloy Steel supplies SS 304 / 304L Sheets and Plates in India for industrial and fabrication requirements. Buyers can enquire about ASTM A240 specifications, thickness, width, length, surface finish and cut-to-size options based on the required grade and application.
Comprehensive standard parameters and dimensions for SS 304 and SS 304L flat-rolled stainless steel products.
| Parameter | Details |
|---|---|
| Product Name | SS 304 / 304L Stainless Steel Sheets & Plates |
| Grades | SS 304 & SS 304L |
| UNS Designations | S30400 & S30403 |
| Material Type | Austenitic stainless steel |
| Product Standard | ASTM A240 / ASME SA240, where applicable |
| Common Equivalent Grades | 1.4301, 1.4307, X5CrNi18-10, SUS 304 / SUS 304L |
| Thickness & Dimensions | As per specification and order requirements |
| Surface Finish | Subject to grade, product form and availability (2B, No. 1, No. 4, BA, Mirror Finish) |
| Supply Options | Standard sizes and cut-to-size requirements, subject to availability |
Direct comparison of chemical composition limits, mechanical performance values, and international equivalents.
| Chemical Element | SS 304 (UNS S30400) | SS 304L (UNS S30403) |
|---|---|---|
| Carbon (C) | 0.08% max | 0.03% max |
| Manganese (Mn) | 2.00% max | 2.00% max |
| Phosphorus (P) | 0.045% max | 0.045% max |
| Sulphur (S) | 0.030% max | 0.030% max |
| Silicon (Si) | 1.00% max | 1.00% max |
| Chromium (Cr) | 18.00–20.00% | 18.00–20.00% |
| Nickel (Ni) | 8.00–10.50% | 8.00–12.00% |
| Iron (Fe) | Balance | Balance |
| Property | SS 304 | SS 304L |
|---|---|---|
| Density | 7.93 g/cm³ | 7.93 g/cm³ |
| Melting Range | Approx. 1400°C | Approx. 1400°C |
| Tensile Strength | 515 MPa | 485 MPa |
| Yield Strength (0.2% Offset) | 205 MPa | 170 MPa |
| Elongation | 40% | 40% |
| Hardness | 201 HB | 201 HB |
| Standard | SS 304 | SS 304L |
|---|---|---|
| UNS | S30400 | S30403 |
| Werkstoff / W.Nr. | 1.4301 | 1.4307 |
| EN | X5CrNi18-10 | X2CrNi18-9 |
| JIS | SUS 304 | SUS 304L |
| BS | 304S31 | 304S11 |
Explore our complete range of Sheets & Plates for different industrial, fabrication and engineering requirements.
Key metallurgical differences to help engineers and procurement teams choose the optimal grade for fabrication.
| Comparison | SS 304 | SS 304L |
|---|---|---|
| Carbon Content | 0.08% maximum | 0.03% maximum |
| Key Characteristic | General-purpose corrosion resistance and formability | Lower carbon content helps reduce sensitisation during welding |
| Fabrication Consideration | Suitable for many formed and welded components | Often preferred for welded fabrications where intergranular corrosion is a concern |
| Typical Selection | Equipment panels, enclosures and general fabrication | Welded tanks, process equipment and fabricated assemblies |
Estimate real-time weight per square metre, per piece, and total batch weight for SS 304 / 304L sheets and plates with our live 3D visualizer engine.
Density: 7.93 g/cm3 | Real-time weight estimator for stainless steel sheets and plates.
Total Weight
49.56 kg
0.050 tonnes · 1 sheet
Weight per sheet
49.56 kg
Weight per m²
15.86 kg/m²
Area per sheet
3.125 m²
Total area
3.125 m²
Spec: Metalloy Steel | Grade: SS 304 Sheet & Plate | Thk: 2.0 mm | W: 1,250 mm | L: 2,500 mm | Qty: 1 sheet | Total: 49.56 kg
Engineered for formability, weldability, hygienic surface finish, and long service life across diverse operating environments.
Suitable for bending, cutting, stamping and fabrication into panels, covers, tanks and equipment housings.
SS 304L's lower carbon content helps reduce carbide precipitation and sensitisation during welding.
Can be specified with suitable finishes for architectural, industrial and process-equipment requirements.
Both grades support a range of fabrication needs, with grade selection based on welding requirements and operating conditions.
Specified thicknesses and cut-to-size dimensions can help reduce excess material during fabrication, subject to availability.
For applications requiring improved resistance to pitting and crevice corrosion in chloride-containing environments, consider our SS 316 Sheets & Plates.
Typical industrial components and sectors utilizing SS 304 and SS 304L flat-rolled products.
| Industry | Typical Applications |
|---|---|
| Food & Beverage | Processing equipment, work surfaces, storage vessels and enclosures |
| Chemical Processing | Tanks, equipment panels and vessels for compatible chemicals |
| Pharmaceutical | Equipment housings and fabricated components meeting specified cleaning requirements |
| Construction & Architecture | Wall cladding, interior panels, trims and architectural fabrications |
| Automotive & Engineering | Machine covers, brackets, guards and fabricated components |
| Water Treatment | Equipment panels, tanks and system enclosures for compatible water conditions |
Metalloy Steel can discuss inspection and documentation requirements for SS 304 / 304L Sheets & Plates according to the purchase specification and order scope.
Can be requested, subject to availability, to document heat-specific chemical composition and mechanical test results.
Can help verify alloy composition and distinguish SS 304 / 304L from other stainless steel grades.
Verifies material chemistry against the specified grade and standard.
Tests such as tensile testing can be specified according to applicable requirements.
Checks thickness, width and length against the purchase order.
Checks visible surface condition and finish against agreed requirements.
Can be discussed subject to project requirements and availability.
Clarifications on sheet grades, welding suitability, dimensions, cut-to-size options, and procurement.
SS 304L has a lower carbon limit than SS 304, helping reduce sensitisation during welding. The appropriate grade depends on fabrication and service requirements.
ASTM A240 / ASME SA240 is commonly specified for chromium and chromium-nickel stainless steel plate, sheet and strip used in pressure vessels and general applications.
Buyers can enquire about required thickness, width and length. Cut-to-size options depend on the available material and order requirements.
They can be used with compatible chemicals, but suitability depends on concentration, temperature and exposure conditions.
Share the grade, thickness, width, length, quantity, surface finish and applicable standard to help confirm the required specification.
Contact Metalloy Steel, an SS 304 Sheets Supplier in India, with your required grade, dimensions and quantity to enquire about availability, inspection requirements and pricing.
