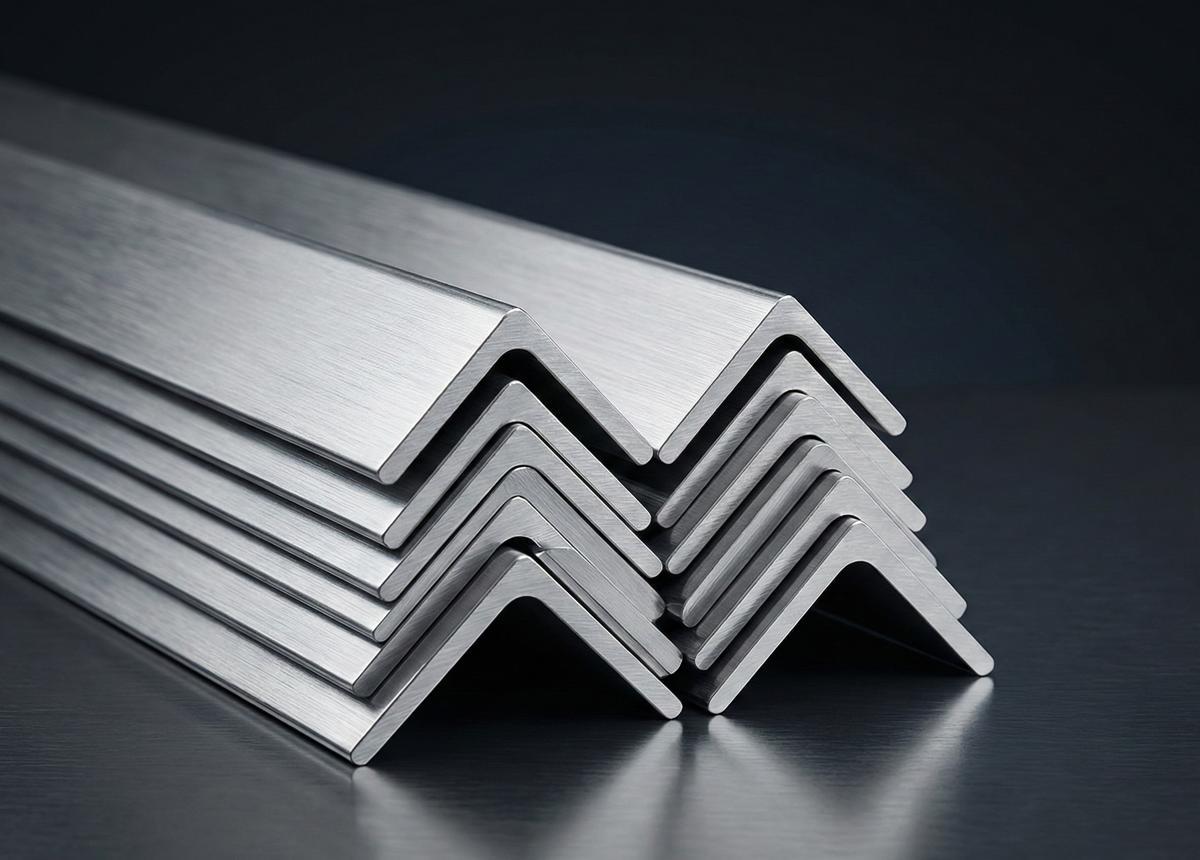

SS 304 Angles (UNS S30400) are L-shaped stainless steel sections used in brackets, equipment frames, support structures and general fabrication. With a density of approximately 7.93 g/cm³, they offer a useful combination of formability, strength and corrosion resistance for many industrial environments. Their equal- or unequal-leg profiles support different structural and connection requirements.
Metalloy Steel supplies SS 304 Angles in India for industrial and engineering applications, subject to availability. Customers can enquire with their required leg dimensions, thickness, length, quantity and applicable standard to confirm product specifications. Contact Metalloy Steel to check availability and request pricing for your SS 304 Angle requirements.
Standard manufacturing dimensions, designations, and supply conditions for SS 304 structural angle sections.
| Specification | Details |
|---|---|
| Product Name | SS 304 Angles |
| UNS Designation | S30400 |
| Werkstoff Number | 1.4301 |
| Material Type | Austenitic Stainless Steel |
| Product Forms | Equal-Leg and Unequal-Leg Angles |
| Density | 7.93 g/cm³ |
| Dimensions | As per required profile and availability |
| Length | Standard or cut-to-length, subject to availability |
| Manufacturing Route | Hot-rolled or cold-formed, subject to availability |
International standard cross-references, chemical limits and mechanical data for UNS S30400 / 1.4301 angles.
| Standard | Equivalent Designation |
|---|---|
| UNS | S30400 |
| Werkstoff Number | 1.4301 |
| EN | X5CrNi18-10 |
| JIS | SUS 304 |
| BS | 304S31 |
| GOST | 08Х18Н10 |
| AFNOR | Z7CN18-09 |
| Chemical Element | SS 304 (UNS S30400) |
|---|---|
| Carbon (C) | 0.08% max |
| Manganese (Mn) | 2.00% max |
| Silicon (Si) | 0.75% max |
| Phosphorus (P) | 0.045% max |
| Sulphur (S) | 0.030% max |
| Chromium (Cr) | 18.00–20.00% |
| Nickel (Ni) | 8.00–11.00% |
| Iron (Fe) | Balance |
| Property | Value |
|---|---|
| Density | 7.93 g/cm³ |
| Melting Point | Approximately 1,400–1,450°C |
| Tensile Strength | 515 MPa |
| Yield Strength (0.2% offset) | 205 MPa |
| Elongation | 35% |
For other stainless steel products, explore our Angles range.
Estimate real-time linear mass (kg/m), bar weight, and total order requirements for equal and unequal SS 304 angle profiles with our interactive 3D visualizer engine.
Density: 7.93 g/cm3 (7930 kg/m3) | Real-time weight estimator for equal and unequal leg stainless steel angles.
Total Weight
22.60 kg
0.023 tonnes · 1 pc × 6.00 M
Weight per metre
3.767 kg/m
Weight per piece
22.60 kg
Cross-section area
475.0 mm²
Total length
6.00 M
Spec: Metalloy Steel | Grade: SS 304 Angle | Size: 50 × 50 × 5.0 mm | L: 6.00 M | Qty: 1 pc | Total: 22.60 kg
Metalloy Steel supplies SS 304 Angles in various profile designs and manufacturing routes to suit diverse industrial applications.
Features two equal-width legs for symmetrical brackets, equipment frames and support structures.

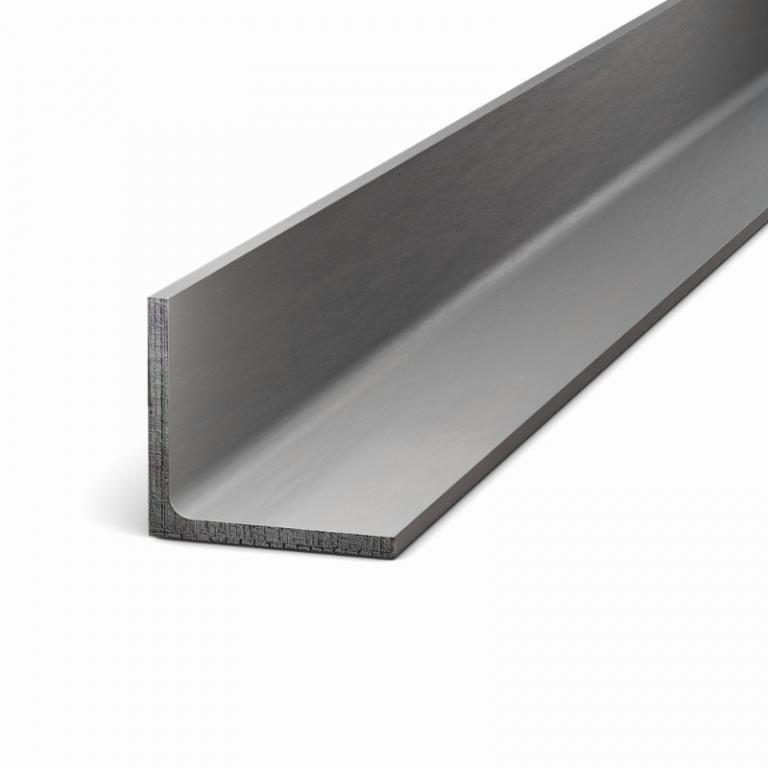

Features different leg widths for offset connections and space-restricted installations.

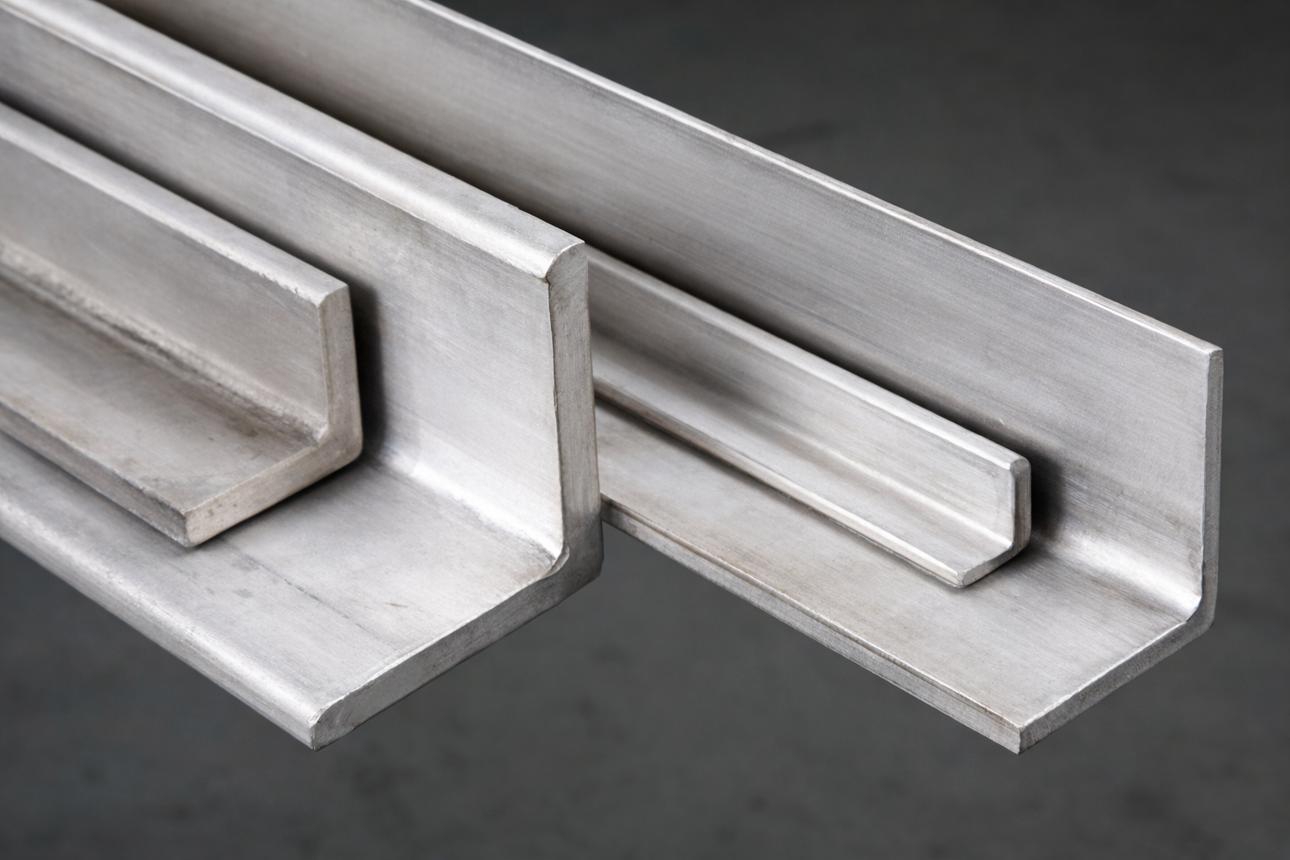

Manufactured through hot rolling for fabrication applications requiring specified section dimensions.

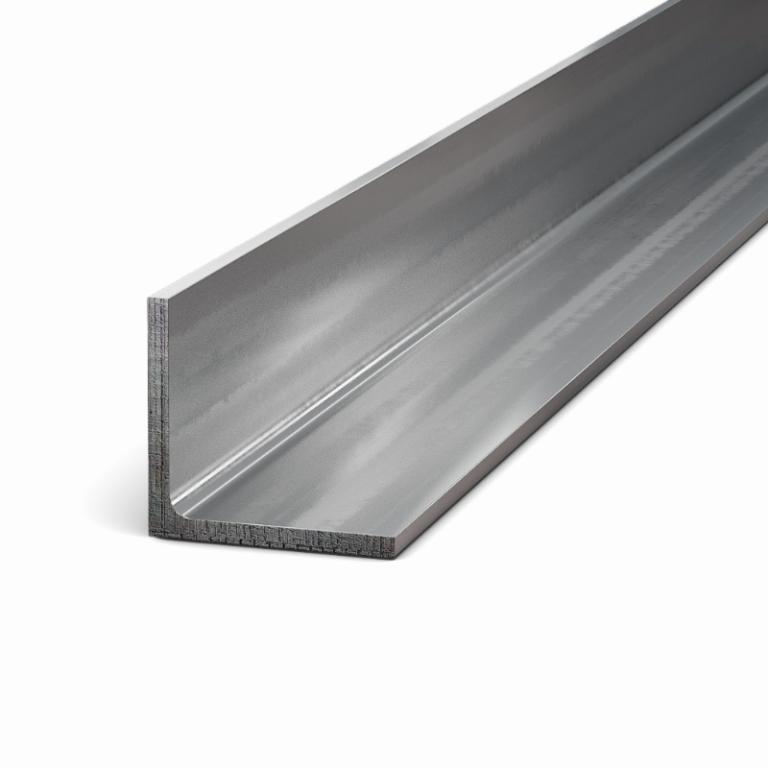

Formed from stainless steel sheet or strip for lighter sections and specific dimensional requirements.
Engineered for strength, connection efficiency, and versatile mechanical assembly.
The L-shaped profile provides two perpendicular faces for joining components, mounting brackets and forming corner connections.
Equal- and unequal-leg profiles help accommodate different connection layouts without requiring a solid rectangular section.
SS 304 work-hardens during cold deformation, which should be considered when planning forming operations and subsequent machining.
SS 304 can generally be welded using suitable procedures. Appropriate cleaning and finishing after welding help maintain the surface condition and corrosion performance.
Typical sectors and structural components utilizing SS 304 stainless steel angles.
| Industry | Typical Applications |
|---|---|
| Construction & Fabrication | Support frames, brackets and fabricated structures |
| Food Processing | Equipment supports and non-critical structural components |
| Chemical Processing | Selected equipment supports and ancillary structures |
| Automotive & Machinery | Mounting brackets, machine frames and component supports |
| Architectural Fabrication | Interior frames, edge supports and metalwork |
| General Engineering | Custom-fabricated assemblies, corner connections and fixtures |
Metalloy Steel can discuss inspection and documentation requirements for SS 304 Angles according to the agreed purchase specification and order scope.
Can be requested, subject to availability.
Can help verify the alloy grade.
Verification against specified composition requirements, subject to the agreed testing scope.
Subject to the applicable material specification and order requirements.
Checks leg widths, thickness, length and other agreed dimensions.
Can be arranged subject to availability and project requirements.
Common questions regarding SS 304 angles, leg dimensions, welding suitability, and order details.
SS 304 Angles are used in equipment frames, brackets, support structures, machinery components and general industrial fabrication.
Equal angles have two legs of the same width, while unequal angles have different leg widths to suit specific connection layouts and space requirements.
The reference density of SS 304 is 7.93 g/cm³. Actual section weight depends on the angle dimensions, thickness, length and manufacturing tolerances.
Yes, SS 304 Angles are generally weldable using suitable procedures and compatible filler materials. Proper cleaning and finishing help maintain corrosion performance around welded areas.
Share the required angle type, leg dimensions, thickness, length, quantity and applicable material or dimensional standard to confirm availability and pricing.
Metalloy Steel supports enquiries for SS 304 Angles based on project dimensions and material requirements. Share your required profile, dimensions, length and quantity to enquire about availability and pricing.
