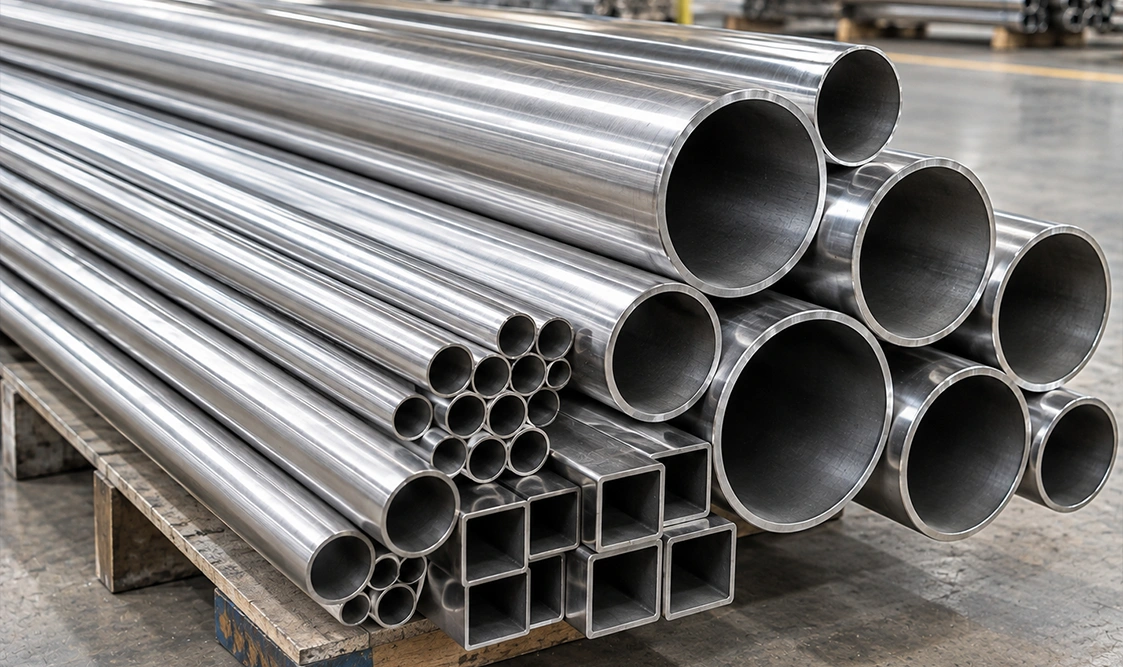

SS 304 Seamless Pipes are manufactured by piercing and processing solid billets without creating a longitudinal weld seam. Made from UNS S30400, they offer good corrosion resistance, formability and toughness for compatible industrial piping and equipment applications.
Metalloy Steel supplies SS 304 Seamless Pipes and Tubes in India for industrial requirements. Buyers can enquire about ASTM A312 SS 304 Seamless Pipes, specifying the required outside diameter, wall thickness, length and quantity to confirm product suitability, availability and pricing.
Comprehensive standard parameters and dimensions for SS 304 seamless stainless steel pipe and tube products.
| Parameter | Details |
|---|---|
| Product Name | SS 304 Seamless Pipes & Tubes |
| Grade | Stainless Steel 304 |
| UNS Designation | S30400 |
| Material Type | Austenitic stainless steel |
| Manufacturing Process | Seamless, formed without a longitudinal weld seam |
| Product Standard | ASTM A312 / ASME SA312 |
| Dimensions | Outside diameter and wall thickness as specified |
| Length | Standard or cut lengths, subject to requirements and availability |
| Supply Details | Grade, dimensions, quantity, service conditions and inspection requirements |
International standard cross-references, chemical composition limits, and mechanical property parameters for UNS S30400.
| Standard | Equivalent Designation |
|---|---|
| UNS | S30400 |
| Werkstoff / W.Nr. | 1.4301 |
| AFNOR | Z7CN18-09 |
| EN | X5CrNi18-10 |
| JIS | SUS 304 |
| BS | 304S31 |
| GOST | 08Х18Н10 |
| Chemical Element | Composition (%) |
|---|---|
| Carbon (C) | 0.08 max |
| Manganese (Mn) | 2.00 max |
| Silicon (Si) | 1.00 max |
| Phosphorus (P) | 0.045 max |
| Sulphur (S) | 0.030 max |
| Chromium (Cr) | 18.00–20.00 |
| Nickel (Ni) | 8.00–10.50 |
| Iron (Fe) | Balance |
| Mechanical Property | Value |
|---|---|
| Density | 8.0 g/cm³ |
| Melting Range | Approximately 1400°C |
| Tensile Strength | 515 MPa |
| Yield Strength (0.2% Offset) | 205 MPa |
| Elongation | 40% |
| Hardness | Approximately 201 HB |
| Solution Annealing Temperature | Approximately 1040°C |
For other available stainless steel pipe grades and schedules, explore our Pipes & Tubes range.
Estimate real-time linear mass and total order weight for SS 304 Seamless Pipes and stainless steel tubes with our live 3D visualizer engine.
Density: 7.93 g/cm3 (7930 kg/m3) | Real-time weight estimator for stainless steel pipes.
Pick a size to auto-fill OD and wall thickness, or choose Custom and enter your own.
Total Weight
32.96 kg
0.033 tonnes · 1 pc × 6.00 M
Weight per metre
5.493 kg/m
Weight per piece
32.96 kg
Inner diameter
52.48 mm
Total length
6.00 M
Spec: Metalloy Steel | Grade: SS 304 Seamless Pipe | Size: 50 NB (2") SCH 40S | OD: 60.3 mm | WT: 3.91 mm | L: 6 M | Qty: 1 pc | Total: 32.96 kg
Engineered for high-integrity pressure containment, structural reliability, and uniform metallurgical properties without welded seams.
Suitable for applications where the design specification calls for seamless pipe construction.
Can be specified for compatible pressure services when the pipe dimensions, design code, temperature and pressure ratings meet requirements.
Supports cutting, forming and welding using appropriate procedures for stainless steel.
Performs well in many atmospheric and process environments, subject to chemical concentration and operating temperature.
UNS S30400 and designation 1.4301 help purchasing teams match material requirements across specifications and supply documents.
For applications where welded construction meets the project requirements, explore our SS 304 ERW Pipes.
Typical components and industrial sectors relying on SS 304 seamless stainless steel pipes.
| Industry | Typical Applications |
|---|---|
| Oil & Gas | Selected utility lines and process systems where SS 304 meets service requirements. |
| Chemical Processing | Piping for compatible chemicals and process fluids. |
| Food & Beverage | Process equipment and transfer lines with suitable surface and cleaning requirements. |
| Pharmaceutical | Utility piping and equipment systems meeting specified hygiene standards. |
| Power & Utilities | Selected water, utility and auxiliary piping systems. |
| General Engineering | Instrumentation connections, equipment piping and fabricated assemblies. |
Metalloy Steel can discuss inspection and documentation requirements for SS 304 Seamless Pipes according to the purchase specification and order scope.
Can be requested, subject to availability.
Helps verify alloy grade.
Checks composition against the specified grade.
Testing can be specified according to the applicable standard.
Verifies outside diameter, wall thickness and length.
Can be discussed subject to project requirements and availability.
Clarifications on standards, grade equivalents, dimensions, and procurement for SS 304 Seamless Pipes.
The UNS designation is S30400. Other common equivalents include 1.4301, X5CrNi18-10 and SUS 304.
ASTM A312 / ASME SA312 is commonly specified for austenitic stainless steel pipes. Confirm the required grade, dimensions and service conditions before ordering.
Seamless pipes are formed without a longitudinal weld seam, while welded pipes are made by joining formed steel strip or plate. The appropriate product depends on the design code and application.
They may be suitable when the selected dimensions, material condition and allowable pressure meet the governing design code and operating requirements.
Buyers can enquire about required outside diameter, wall thickness and length. Supply options depend on the specification and availability.
Provide the grade, pipe or tube dimensions, length, quantity, applicable standard and intended service conditions.
Contact Metalloy Steel, an SS 304 Seamless Pipes Supplier in India, with your required dimensions, quantity and applicable standard to discuss product suitability, availability and pricing.
